Outdoor Power Label Printer Buying Guide

In substations, communication base stations, outdoor event sites or complex mechanical equipment rooms, we often see a dense network of power cables crisscrossing. Once the marking is unclear, at the very least, it will lead to equipment maintenance being like “looking for a needle in a haystack”, seriously affecting work efficiency. In severe cases, it may lead to misoperation, causing equipment damage or even personal safety accidents.

A clear, standardized and durable label is the “ID card” of the cable and the cornerstone of safe and efficient operation. However, ordinary office label printers simply cannot withstand the harsh outdoor environment. This article will provide you with a detailed guide for purchasing outdoor power label printers to help you make the wisest choice.

Why Can’t We Just Use A Label Printer At Random?

First of all, we need to clarify the special requirements for outdoor power supply identification:

Harsh environment: It needs to withstand sun exposure, rain, dust, oil stains, ultraviolet radiation and significant temperature changes.
Durability requirement: The marking must remain clear throughout the entire life cycle of the equipment and should not fade, wear out or fall off easily.
Professional standards: The content may contain complex information such as voltage, current, direction, equipment number and QR code, which requires professional layout and printing quality.

The labels printed by ordinary thermal label printers tend to turn black when exposed to heat, become blurred when exposed to water, and fade easily when rubbed. They are definitely not suitable for outdoor power supply identification. Therefore, you need a professional industrial-grade handheld label printer.

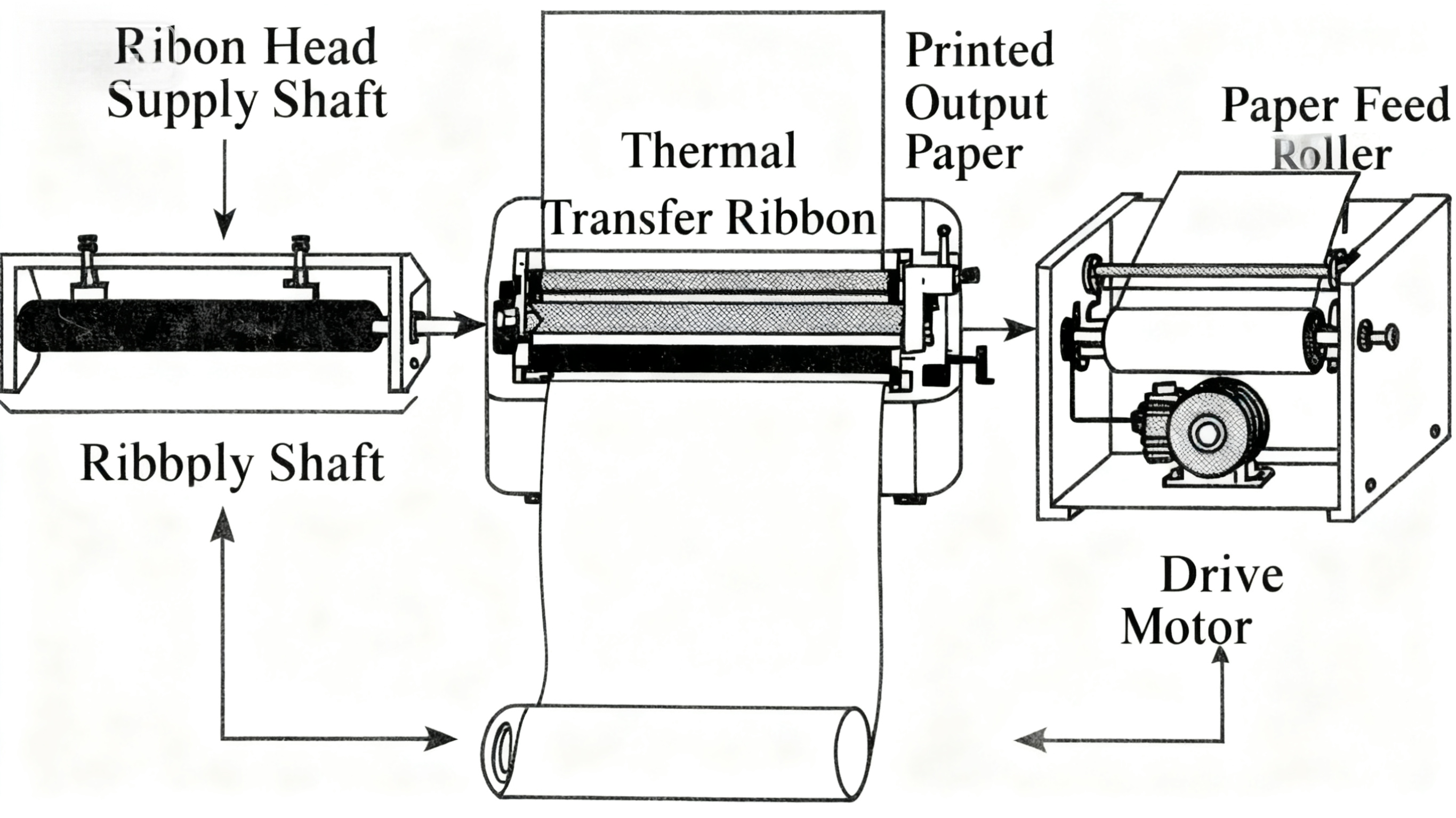

Schematic diagram illustrating the working principle of a thermal transfer printer

The Six Core Points

1. Label material and durability (top priority!)

The printer itself is a tool; it is the label that ultimately stands the test outdoors. Therefore, choosing a printer that can print on a variety of durable materials is crucial.

PVC heat shrink tubing label: This is the ultimate solution for outdoor power cable identification. It is a kind of sleeve. After printing, it is placed over the cable. When heated with a hot air gun, it will contract evenly and closely adhere to the surface of the cable, forming a permanent mark that is fully wrapped, waterproof, oil-proof and wear-resistant.

Laminated label: A transparent protective film is covered on the surface of the printed label. This film offers outstanding scratch resistance, chemical corrosion resistance and UV protection, making it an ideal choice for panel markings and equipment nameplates.

Braided wire labels/fabric labels: Excellent flexibility, suitable for cables that need to be frequently bent and moved.

Purchase suggestion: The printer you choose must support the use of thermal transfer technology and be compatible with the above-mentioned professional label tapes, especially PVC heat shrink tubes.

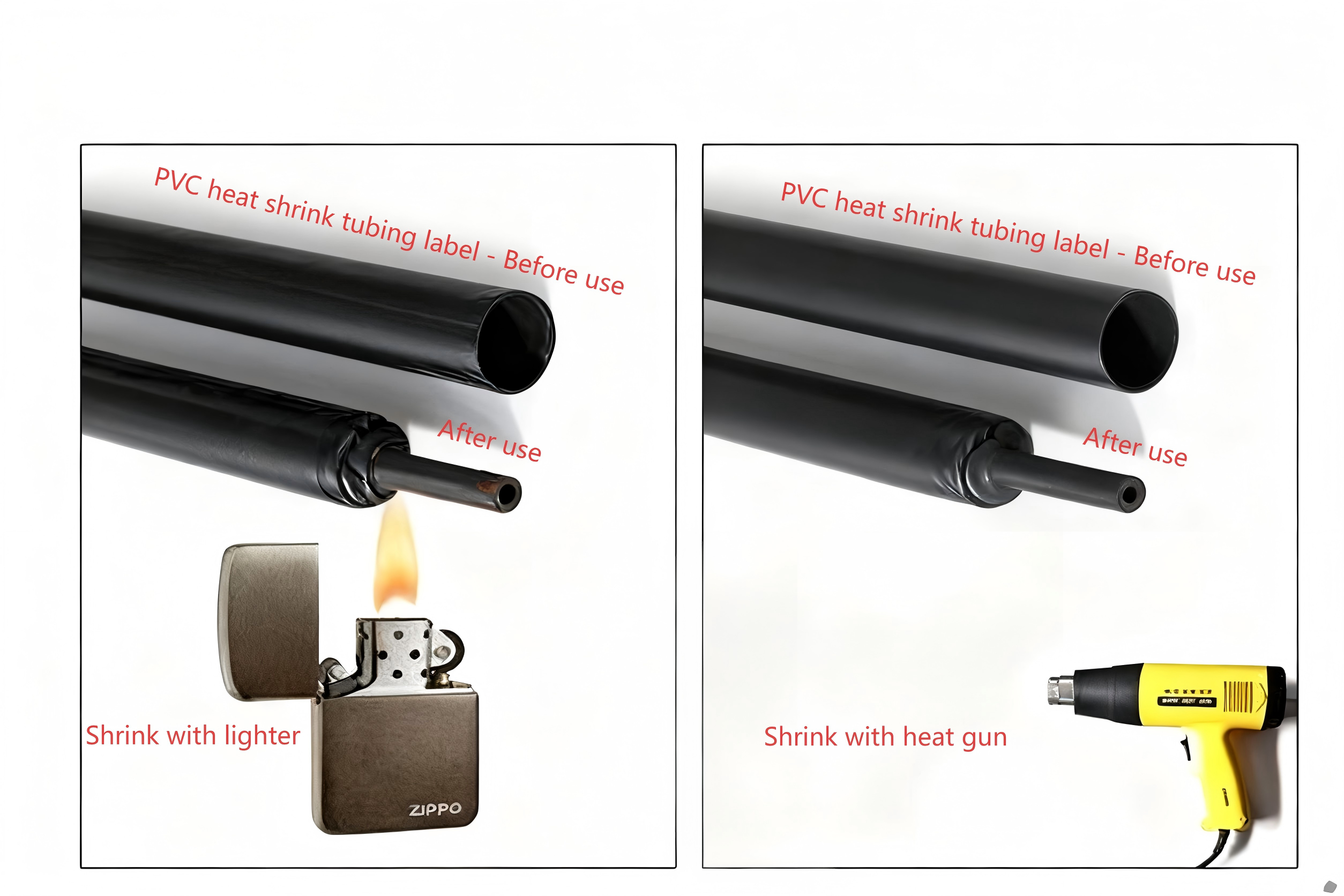

PVC heat shrink tubing labels before and after heating After heating, they tightly wrap the cable, becoming waterproof and wear-resistant

2. Printing technology: Thermal transfer vs. thermal Printing

This is the core technology that determines the durability of the label.

Heat transfer printing (highly recommended)

Principle: By heating the carbon ribbon, the toner on the carbon ribbon is transferred to the label ribbon.

Advantages: The printing effect is extremely clear and durable. As long as the material of the carbon ribbon and the label matches, the printed content can resist the erosion of the vast majority of harsh outdoor environments. Qr codes and barcodes can be printed, facilitating digital management.

Conclusion: For outdoor power supply labels, please unconditionally choose a thermal transfer printer.

Thermal Printing(not recommended for outdoor use) :

Principle: Directly heat and develop the thermal label paper.

Disadvantages: The label has a short lifespan, is sensitive to heat, light and friction, and will naturally fade when exposed outdoors for a long time, leaving potential safety hazards.

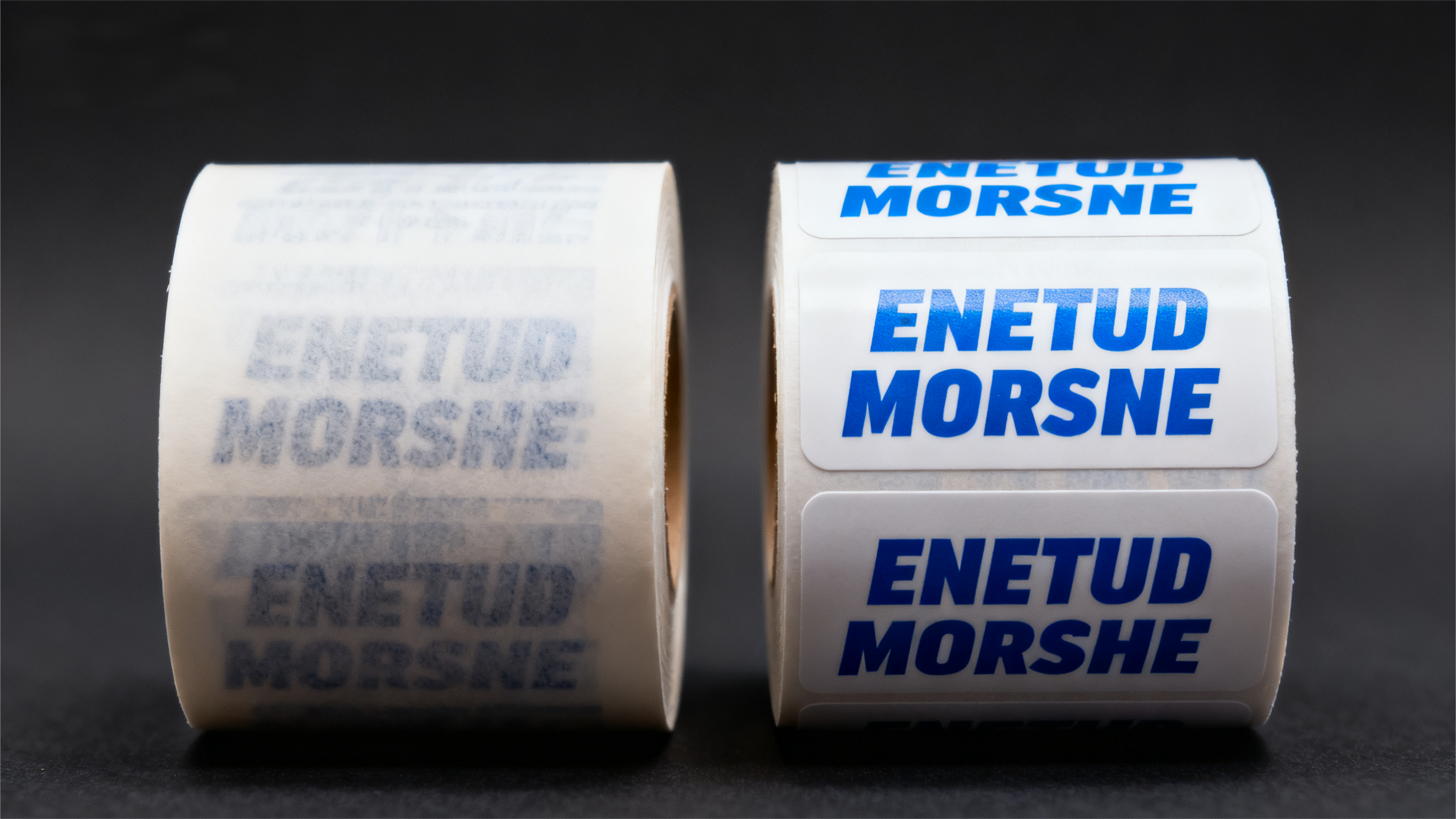

Comparison of durability between thermal labels and thermal transfer labels The thermal label has faded, while the thermal transfer label remains clear.

3. Portability and Power Supply For outdoor operations, flexibility is paramount.

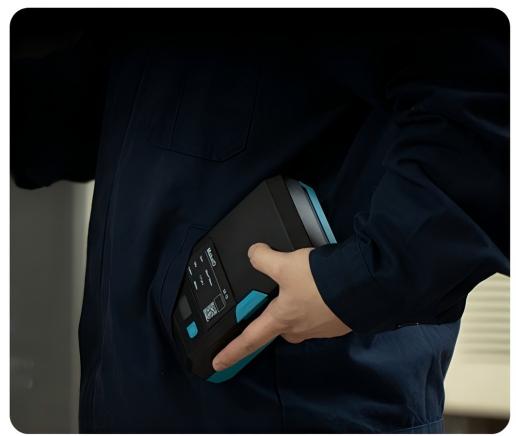

Portability: The machine should be compact, lightweight, easy to hold and carry with one hand, and easily fit into a tool bag.

Power Supply:

Rechargeable lithium battery (preferred): Offers true wireless freedom, printing thousands of characters on a single charge, ideal for 24/7 field work.

Dry cell batteries (AA/AAA): Provides a backup option, readily available when batteries are depleted, but is more expensive in the long run.

Power adapter: Suitable for high-volume pre-processing work in offices or workshops.

Purchase Recommendation: Prioritize models with built-in high-capacity lithium batteries.

4. Durability and protection grade

The printer itself also needs to be hardcore enough to adapt to the construction site environment.

Body structure: Check whether the product material is sturdy.

Protection grade (IP code) : This is an international standard for measuring the dust and water resistance of equipment. For outdoor use, it should at least reach IP54 (dustproof and splash-proof), effectively preventing dust from entering and splashing water from any direction.

5. Functional Design

These functions can greatly enhance the convenience and professionalism of use.

Software and Connectivity: Does it support the connection between the PC/ mobile App and the label printer? This is an indispensable function for users who need to print in batches, import data from Excel, and design complex labels (requiring various patterns, complex tables, barcodes/QR codes).

Connection method: USB data connection is the foundation, while Bluetooth connection enables you to easily edit and print with your mobile phone or tablet, thus being more efficient.

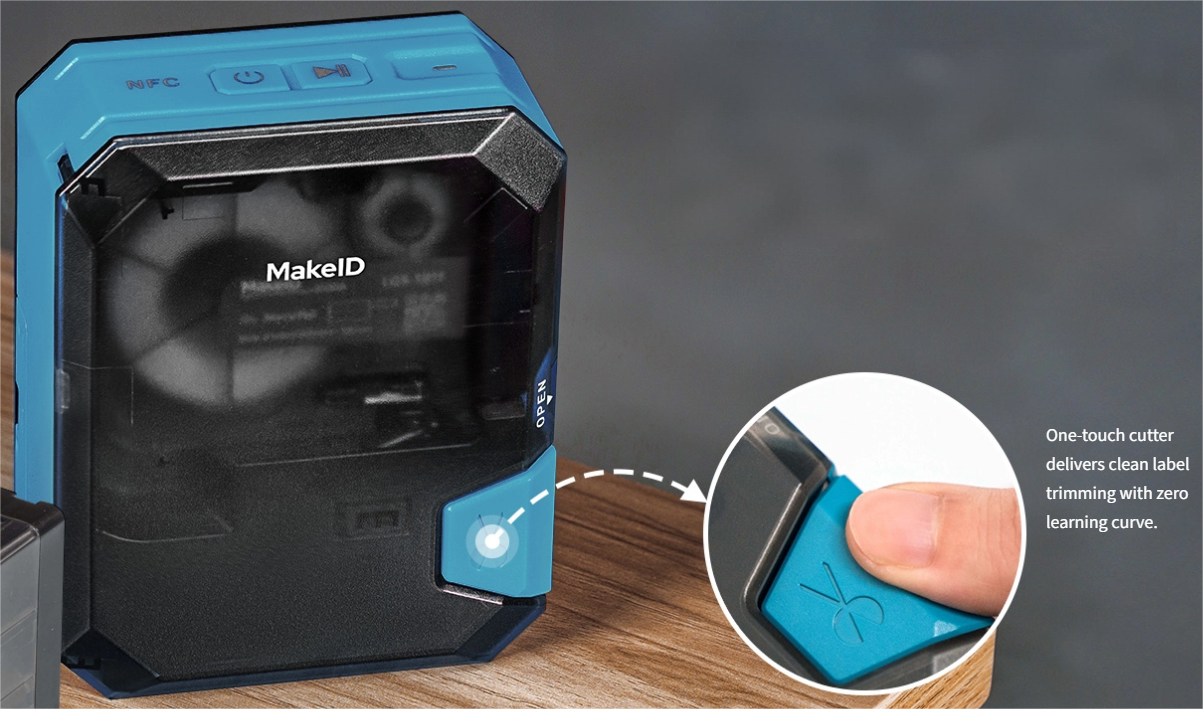

Automatic cutting: Whether it is equipped with an automatic cutting knife that can cut the label as soon as the printing is completed, improving work efficiency.

Professional templates and symbols: Does the machine have built-in professional templates such as cable numbers, polarity symbols, and hazard warning signs? This can help you quickly create labels that comply with industry standards.

6. Brand, Consumables, and Long-Term Costs

Brand consideration: Choose a well-known brand in the industrial label machine field, such as MakeID. We can offer reliable product quality, comprehensive after-sales service and a wide range of consumables options.

Consumable costs: The printer is a one-time investment, but the label tapes and carbon ribbons used later are continuously consumed. Before purchasing, please understand the prices and supply of the original consumables and third-party compatible consumables of this model, and assess the long-term usage cost.

Recommended Purchase Options for Different Scenarios

According to your specific needs, we can match them accordingly

Basic entry-level: Suitable for individual users or small businesses in environments that are not extremely harsh.
Key points: cost performance, basic heat transfer function, portability.

Examples: Portable models that support heat transfer, such as the MakeID W110.

Professional main force level: Suitable for professionals in power, communication engineering and other fields who use it at high intensity on a daily basis.
Key points: Durable and sturdy, high protection level (IP54 or above), long battery life, and support for heat shrink tube printing.

High-efficiency team level: Suitable for large teams or enterprises that require unified identification standards and digital asset management.
Key points: Powerful PC/ mobile software, efficient batch printing and database connection functions, Bluetooth connection.

Summary and Action Checklist

Before pressing the purchase button, please double-check this checklist:

Core: I chose a thermal transfer printer, which is suitable for making durable labels.
Material: The equipment is compatible with outdoor durable materials such as PVC heat shrink tubing and laminated labels.
Portability: The printer is lightweight and portable, and is equipped with a rechargeable lithium battery, meeting the needs of outdoor operations.
Function: Equipped with the practical functions I need (such as Bluetooth connection, automatic cutter, professional symbol library).
Cost: I have a clear understanding of the prices of consumables and their replacement frequencies, and they are in line with the budget plan.

Investing in a professional outdoor power label printer may seem like just adding a piece of equipment on the surface, but in essence, it is adding a solid layer of defense for safety, work efficiency and brand image. A small, high-quality label can prevent huge losses of time and money in the future. I hope this guide can help you find that “sharp tool” that helps you sort out your routes and safeguard your safety!
