Wire Color Coding for Safer Electrical Work
Electrical work requires precision, and not recognizing wires correctly can result in dangerous fires, shocks as well as equipment damage and even costly downtime. For electricians, engineers, contractors, maintenance teams, and others, the wiring color codes are a proven and standard method to prevent confusion and enhance security. When coupled with clear, professionally labels for cables and wires, they create an entire system of identification that protects workers and guarantees the safety of their work.
What Is Wire Color Coding?
Wire color coding uses specific colored insulation to mark the function of each wire in a circuit. The system enables users to identify hot wires and neutral wires and ground wires through visual observation. Since being formalized in the early 20th century, color coding has become a global best practice backed by codes such as the National Electrical Code (NEC) and IEC and ANSI standards.
The goal is simple: create consistency across all electrical projects, so anyone working on the system can identify wires quickly and correctly. The need for this system becomes most important for industrial environments and control panel operations and machinery use and commercial building functions.
Common Wire Color Coding Standards
To ensure consistency across the globe and safety, two key frameworks govern wire color codes: NEC for the United States and IEC for the majority of international markets. Knowing both frameworks helps professionals ensure safety across diverse locations and in different projects.

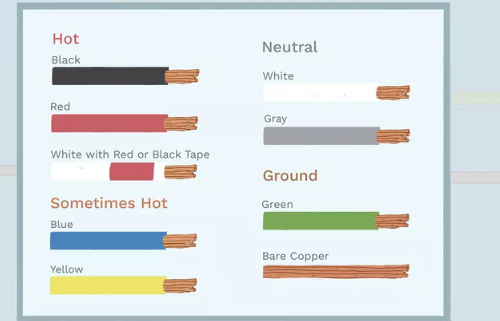

US Wire Color Codes (NEC)
The NEC (National Electrical Code) establishes the highest standards of recognition for electrical systems in North America. Below are the common colors used that apply to AC as well as DC systems:
| Wire Type | Color | Function |
| Hot Wires | Black, Red, Blue, Yellow | Use live electricity to carry |
| Neutral Wires | White, Gray | Return the current state to the panel |
| Ground Wires | Green, Green-Yellow, Bare Copper | Guard against short and overload circuits |
These standards can be applied to single-phase, three-phase commercial, residential, as well as industrial electrical systems.

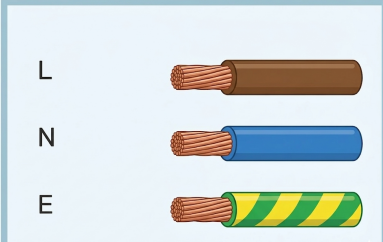

International Wire Color Codes (IEC)
The IEC (International Electrotechnical Commission) standard is widely used throughout Europe, Asia, and the majority of global markets. The most common color rules are:
| Wire Type | Color | Function |
| Phase / Hot Wire | Brown | Carries electrical power that is active. |
| Neutral Wire | Blue | The electrical circuit is completed |
| Ground Wire | Green-Yellow | It provides safety grounding protection |
This global system unified ensures the security and transparency of International projects and equipment, imports of machinery and work in engineering that crosses-borders.
Key Benefits of Wire Color Coding
Wire color coding provides much more than just visual organization. It is a crucial element in the protection of safety, efficiency and long-term reliability of electrical systems.
Enhances Electrical Safety
Color functions as a direct visual indication of danger. Electricians achieve improved safety when they can swiftly recognize live wires which help them avoid electric shock and burn and electrocution hazards. Safety authorities maintain that clear wire identification provides industrial and residential environments with their most effective method to stop electrical accidents from occurring.
Improves Speed and Efficiency
The use of color-coded wiring lets technicians quickly comprehend circuit layouts, without having to trace each connection manually. This speed up installation repairs, troubleshooting, and troubleshooting–in the end cutting down on time spent and cost.
Reduces Human Error
Standardized color systems help minimize wiring mistakes. Through clearly separating the wire’s functions, they can prevent mistakes in wiring that can lead to overloads, short circuits as well as electrical fires.
Supports Long-Term Maintenance
Color-coded, well-organized systems facilitate future maintenance. Technicians can easily understand wiring layouts, often many years after installation, thus reducing the amount of downtime and complexity of maintenance.
Ensures Compliance
Utilizing established wire color coding guidelines helps businesses meet the requirements of regulations and pass safety checks, guaranteeing legal compliance as well as reliability in operation.
Why Still Need Labels for Cables and Wires
While wire color coding provides a quick reference visual however, it does have some limitations in the real world. In time, the colors of wire are susceptible to fade because of ultraviolet exposure, heat as well as chemical interactions. Additionally wires are usually placed in conduits or in a dense panel, where it becomes difficult to distinguish or differentiate.

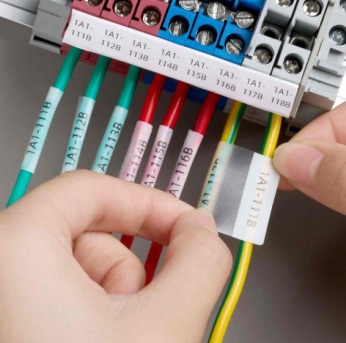

This is when labels for wires and cables become crucial. Labels offer permanent, precise identification that only color can provide. Examples include circuit numbers as well as voltage ratings, equipment destination and safety information. The additional information becomes essential for systems that require precise operation under challenging operational conditions.
The design of premium cable labels allows them to endure extreme environments which include exposure to oil, moisture, dust and physical wear. The labels maintain their complete readability throughout time which leads to better safety measures and organizational efficiency and compliance with regulations and simpler maintenance and troubleshooting processes.
How MakeID Can Help
With over 20 years of experience in marking industrial and precise labels, MakeID offers professional services that enhance wire color code and electrical security.

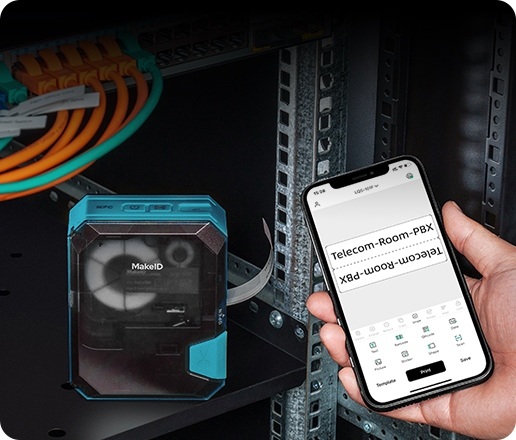

MakeID offers a wide selection of industrial printers and high-performance labels for wires and cables that are designed to last, comfort of use and tough working environments. The portable, intelligent printing tools permit the labeling of control panels on-site as well as wiring harnesses, cabinets and other machinery.
MakeID’s solutions are compatible with:
- A clear, permanent identification of cable and wire
- Resistance to water, oil, abrasion, UV
- Quick, instant labeling in the field
- Safety standards for industrial use.
- Digital workflow and asset management
Globally trusted, MakeID helps teams work better, less error-prone and ensures organized and reliable electrical systems.
Build a Safer, Smarter System
Wire color coding is a foundation of safe electrical work. When enhanced with professional labels for cables and wires, it creates a complete, error‑proof identification system. Whether for residential, commercial, or industrial use, this combination protects workers, reduces risk, and improves efficiency.
With MakeID’s industrial labeling solutions, you can turn wire color coding into a fully reliable safety system that performs for years.
